Single product

Superelastic-nitinoll-tube-ASTM-F2063-medical-applications

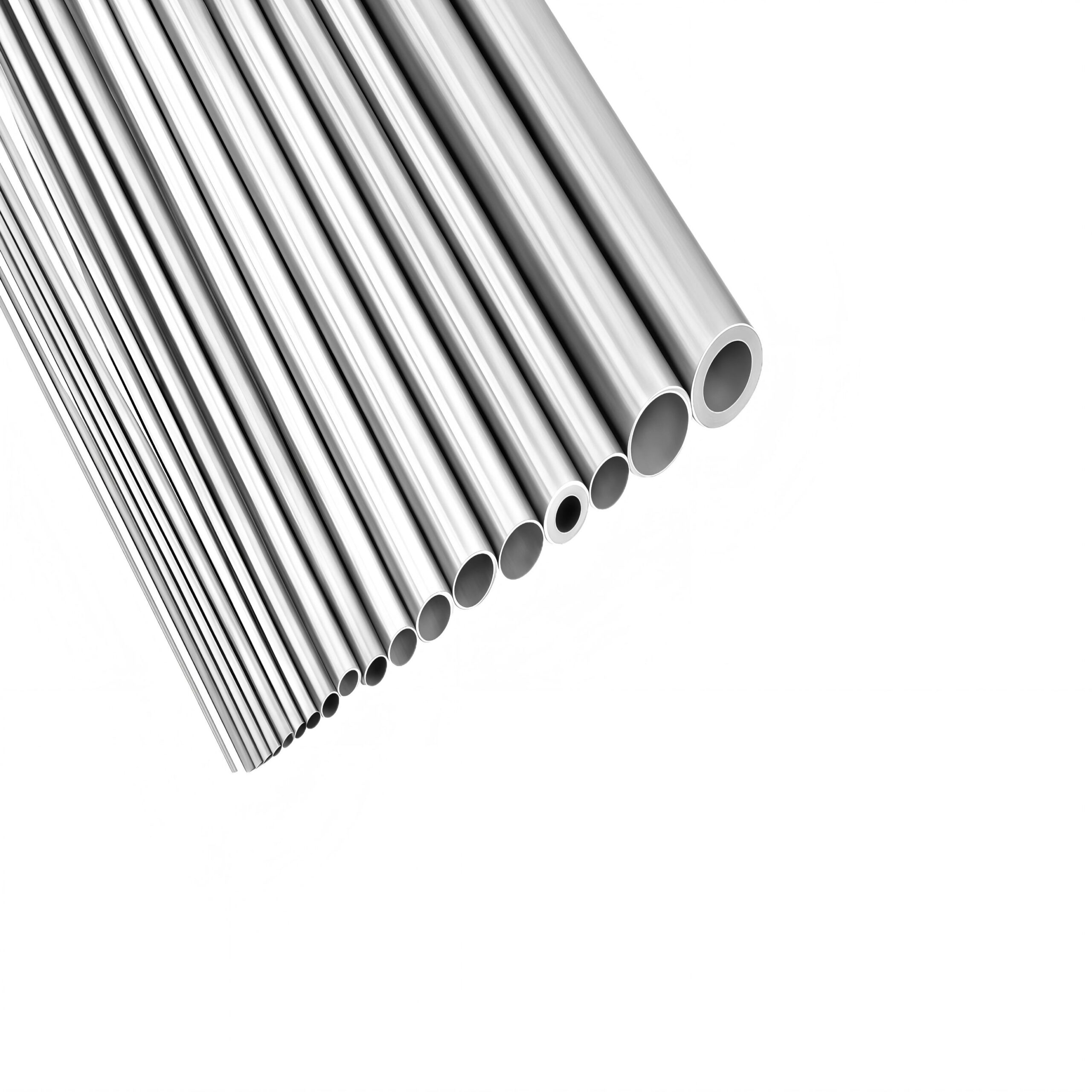

Superelastic Nitinol Tube │ ASTM F2063 Medical Grade

Af temp The finial temperature of factual action recovery can be tested using bending recovery method specified in ASTM F2082/F2082M-16
Surface Outer surface:oxidized state,round state

Inner surface:clean state
Pipe Length The length can be divided into precise or arbitrary lengths
Straightness The requirement for straightness is negotiable
Surface defects The requirements for surface defects can be negotiated
Applications Medical:wave tube,camera tube,bracket,net basket,catheter
Categories: ,

Material

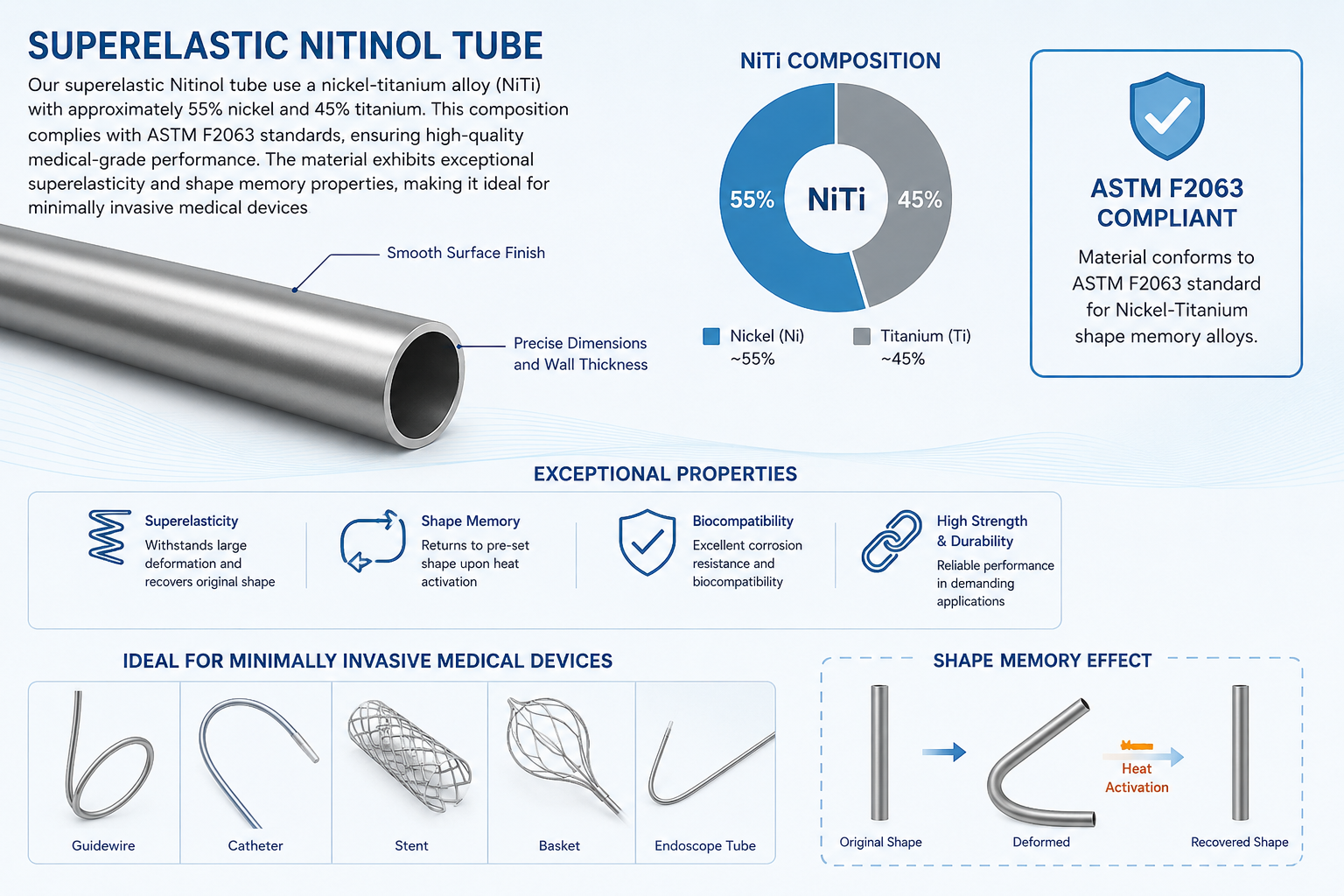

Our superelastic Nitinol tube use a nickel-titanium alloy (NiTi) with approximately 55% nickel and 45% titanium. This composition complies with ASTM F2063 standards, ensuring high-quality medical-grade performance. The material exhibits exceptional superelasticity and shape memory properties, making it ideal for minimally invasive medical devices.



Why Nitinol Is Suitable for Surgical Use

Nitinol offers unique advantages for medical applications:

  • Biocompatibility: Nitinol causes minimal adverse reactions in the body, suitable for long-term implants such as vascular stents and orthopedic staples.

  • Fatigue Resistance: It endure repeated stress without failure, critical for devices like cardiac catheters and orthopedic implants.

  • Shape Memory: At body temperature (37°C), Nitinol activates its shape memory effect, providing continuous compression in fractures or fusion sites to promote healing.

  • Corrosion Resistance: The alloy performs well in harsh bodily fluids, reducing the risk of implant degradation.



Diameter Range

Guide Tube

Nominal OD OD Tolerances ID Tolerances
OD ≤ 0.3mm ±0.005mm ±0.010mm
0.3mm < OD ≤ 0.5mm ±0.010mm ±0.010mm
0.5mm < OD ≤ 1.0mm ±0.010mm ±0.010mm
1.0mm < OD ≤ 1.5mm ±0.010mm ±0.010mm
1.5mm < OD ≤ 2.5mm ±0.010mm ±0.020mm
2.5mm < OD ≤ 3.5mm ±0.020mm ±0.030mm
3.5mm < OD ≤ 5.0mm ±0.020mm ±0.040mm
5.0mm < OD ≤ 10.0mm ±0.020mm ±0.040mm
10.0mm < OD ±0.050mm ±0.050mm

Stent Tube

Nominal OD OD Tolerances WT Tolerances
OD ≤ 0.3mm ±0.010mm ±0.010mm
0.3mm < OD ≤ 0.6mm ±0.015mm ±0.015mm
0.6mm < OD ≤ 1.5mm ±0.020mm ±0.015mm
1.5mm < OD ≤ 2.5mm ±0.020mm ±0.020mm
2.5mm < OD ≤ 3.5mm ±0.020mm ±0.020mm
3.5mm < OD ≤ 5.0mm ±0.030mm ±0.030mm
5.0mm < OD ≤ 10.0mm ±0.050mm ±0.030mm
10.0mm < OD ±0.050mm ±0.050mm



Applications

Our superelastic Nitinol tube is essential for cardiovascular devices (e.g., stents, guidewires), orthopedic staples, and minimally invasive surgical tools. They provide flexibility, strength, and reliability in critical procedures.



Superelastic Nitinol Tube Quality Assurance

Every batch meets ASTM F2063 standards for composition, performance, and safety. We ensure precise dimensions and superelastic properties for high-performance medical devices.
